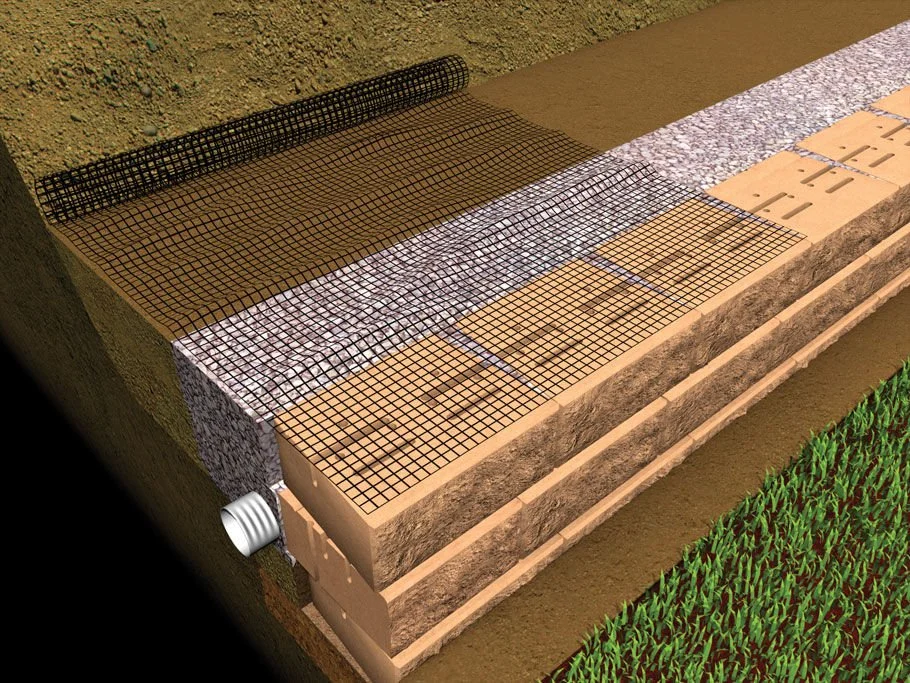

Versa grid (geo textile)

VERSA-Grid comes in multiple strength types. VERSA-Grid 3.0, VERSA-Grid 5.0 and VERSA-Grid 8.0 are the strengths commonly used for landscape and commercial walls. These VERSA-Grid strengths are generally available in 6-ft. wide x 150-ft. long rolls (100 sq.yd. per roll). For some residential walls, VERSA-Grid 1.5 is used, but only for walls up to 6 feet tall. It is available in 4-ft. wide by 50-ft long rolls (22 sq.yd. per roll.)

versa-lifter

For VERSA-LOK Standard Units

The VERSA-Lifter makes it easier to lift and place wall units, especially on the base course. The two prongs on the lifter are placed into the holes in the VERSA-LOK Standard unit. The action of lifting the handle secures the lifter to the unit and makes for easy, balanced lifting and placement.

versa-tuff pins

The Top-Pinning, Hole-to-Slot Advantage

In VERSA-LOK's unique system, pins are inserted in the holes of an upper unit and tapped into receiving slots of two lower units. Top-pinning makes installation easy because the units do not have to be lowered onto pins. Instead, pins are placed in units after the units are set near their final position.

VERSA-LOK’s unique hole-to-slot pinning allows variable bond, which is a structurally preferable installation method. Variable bond eliminates the gaps between units that are necessary with wall systems that require exact half-bond installation. The hole-to-slot pinning system allows units to be adjusted horizontally as needed during construction, and it allows vertical joints to wander in relation to joints in courses above and below.
